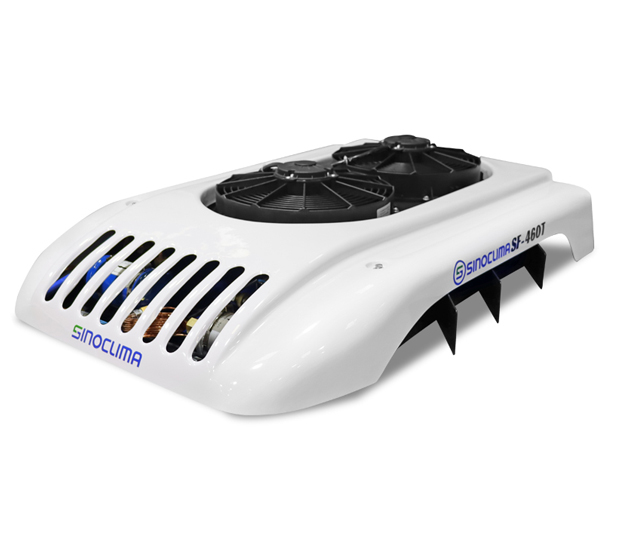

SF-460T

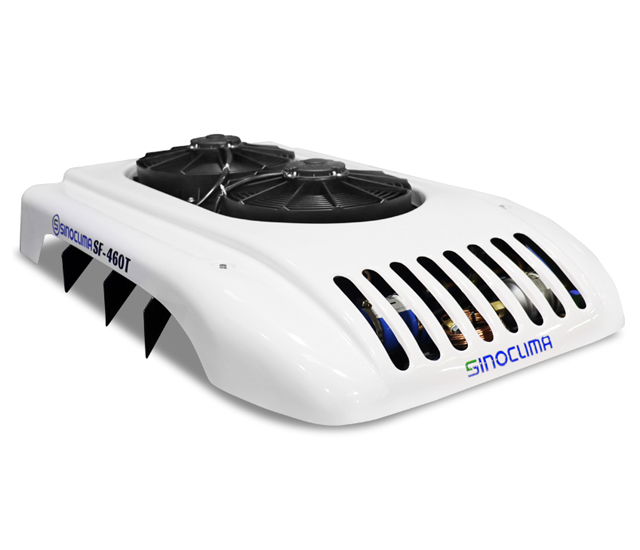

Sinofrigo’s SF-460T van refrigeration equipment is a road-only direct drive van freezer unit,High configuration and low maintenance costs. All key parts are purchased from famous brands.
● Type: Split unit vehicle engine driven type
● Refrigerant & Qty: R404A,0.8kg±5%
● Box Inside Temp: -20℃ ~ +15℃
● Defrosting type: Hot gas defrost(Auto/Manual)
Share With:
Introduction
Product Introduction
Sinofrigo’s SF-460T van refrigeration equipment is a road-only direct drive van freezer unit,High configuration and low maintenance costs. All key parts are purchased from famous brands. Standard versions with Oil separator, Filter Drier,auto defrost.Optional CPR valve,electric standby and heating functions.
With a choice of R404A and R134A gas,it can meet your chill,frozen and deep frozen applications.
Fast cooling, and low fault rates in the van freezer units.

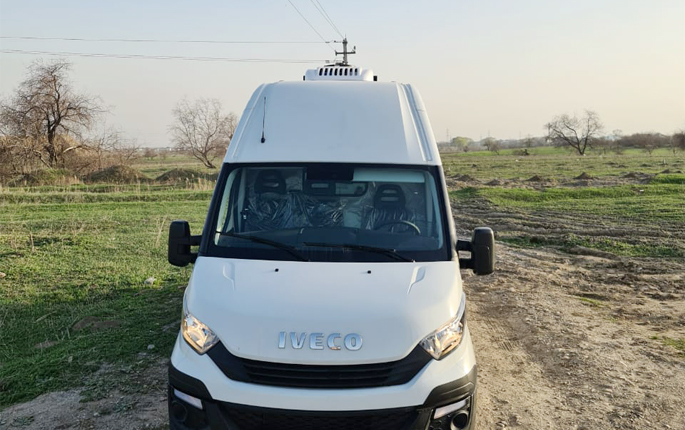

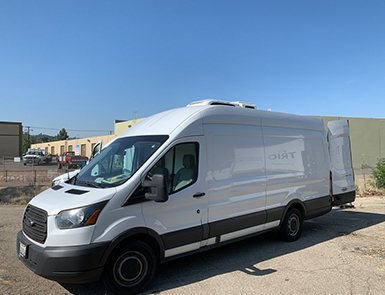

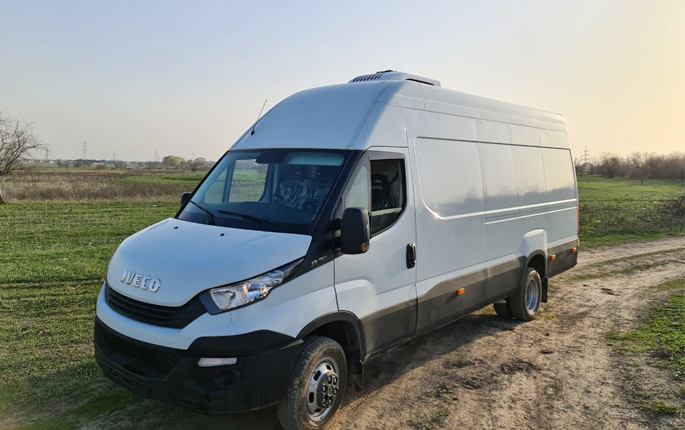

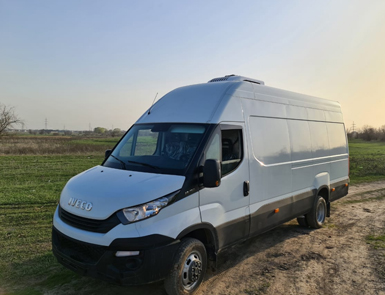

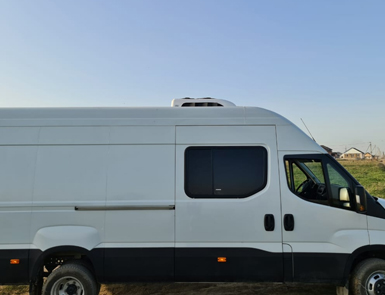

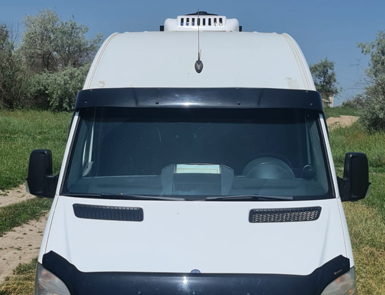

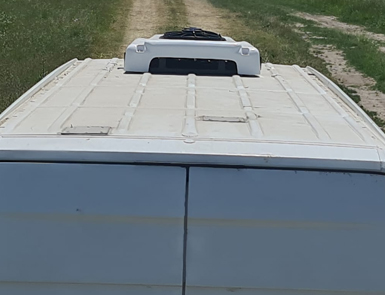

Rooftop refrigerator designed for any all-metal vans such as Gazelle, Ford Transit, MB Sprinter, VW Transporter, etc.Toyota Hiace insulated truck bodies,refeer box volume 14m³to 18m³.Hot selling in UAE, Israel, Canada, New Zealand, Russia, Kazakhstan, Chile, Argentina, Nicaragua, Hungary, Serbia, Bulgaria
Cooling mode in summer from +15°С to 0°С.
Freezing mode from 0°C to -18°C.
Winter heating mode up to +10/12°С.
Features

Streamlined appearance, beautiful and elegant

Internal ultra-thin evaporator, greatly increase the cargo loading capacity

Large cooling capacity ensure the goods safety even in high ambient temperature or frequent door opening

Large airflow volume, maintains the goods in good condition

Microprocessor control and fault alarming, easy operation and safe

Fast installation, convenient maintenance

Optional heating and electric stand-by
Specification
Model SF-460T

Cooling Capacity
Temperature Watts
0℃ 5100W
-20℃ 2450W
Type Split unit vehicle engine driven type
Refrigerant & Qty R404A,1.4kg±5%
Box Inside Temp -20℃ ~ +15℃
Defrosting type Hot gas defrost(Auto/Manual)
Condenser Type Parallel Flow Condenser
Fan Quantity 2Pcs
Fan Type Axial type
Air Flow Volume 2200 m3/h
Dimensions 1060*730*220 mm
Weight 32Kg

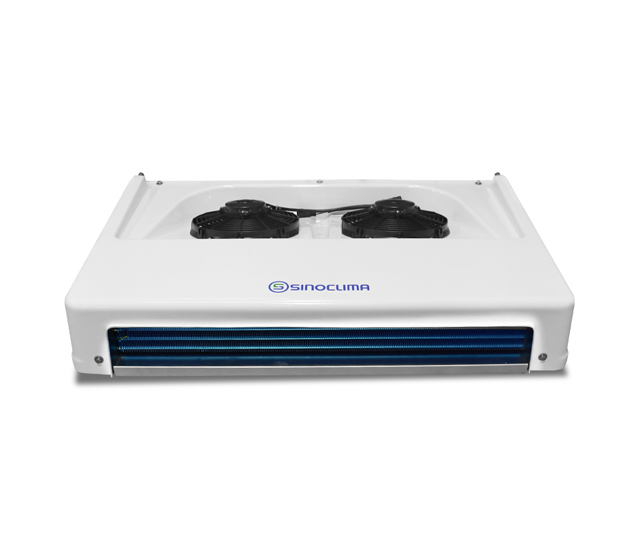

Evaporator Type Inner Grooved Copper Tube and Fin
Fan Quantity 2Pcs
Fan Type Axial type
Air Flow Volume 2200 m3/h
Dimensions 1020*635*210 mm
Weight 26Kg
Compressor Model QP16
Type Swash plate type
Displacement 163cc/r
Refrigerated Oil RL-68H
Applicable Box Volume 16~25m³
Optional function Heating and Electric standby
