Truck Refrigeration Unit SF-500Pro

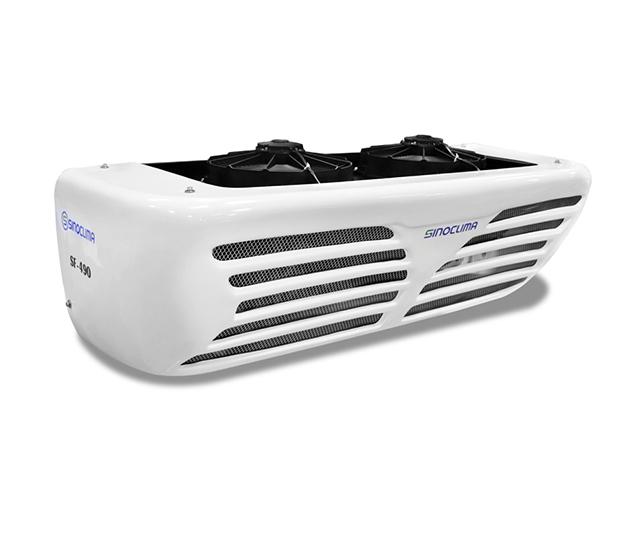

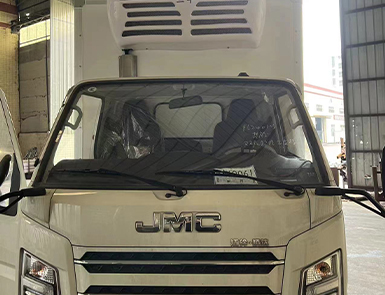

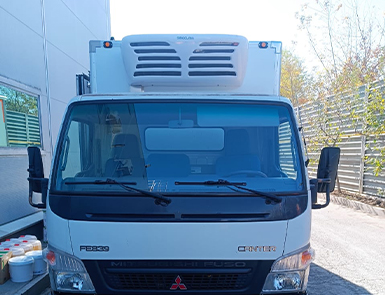

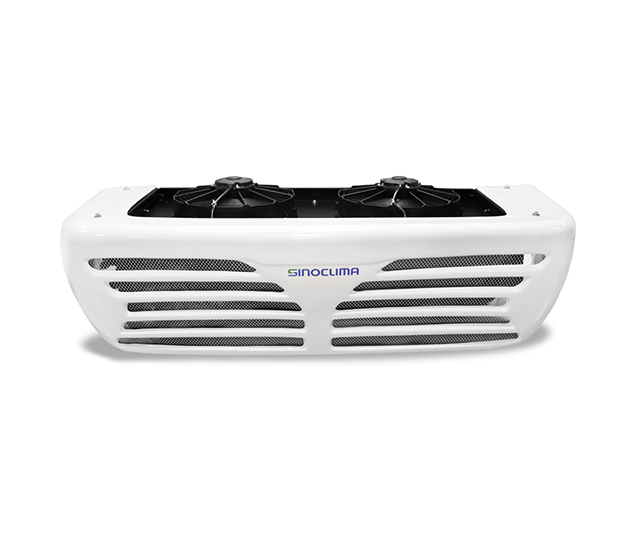

SF-500Pro is a road-only direct drive truck freezer unit, with a Front mount condenser. and super-thin evaporator. Application on refrigerated truck bodies up to 25 m³.
● Type: Split unit vehicle engine driven type
● Refrigerant & Qty: R404A,1.5kg±5%
● Box Inside Temp: -18℃ ~ +15℃
● Defrosting type: Hot gas defrost(Auto/Manual)
Share With:
Introduction
Product Introduction
SF-500Pro is a road-only direct drive truck freezer unit, with a Front mount condenser. and super-thin evaporator.

Application on refrigerated truck bodies up to 25 m³. Refrigeration systems for chilling and deep freezing.

With enough cooling capacity, it provides the cold you need to deliver vegetables, fruit, and frozen foods safely and reliably.

SF-500Pro with CPR valve to ensure stable system pressure and protect the compressor, especially in hot ambient temperature countries.Such as New Zealand, Australia, UAE, Israel, and Egypt...

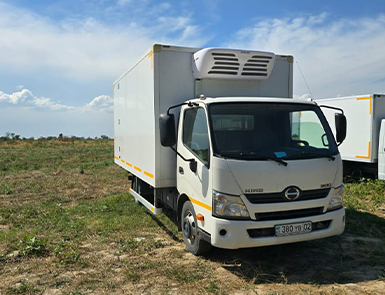

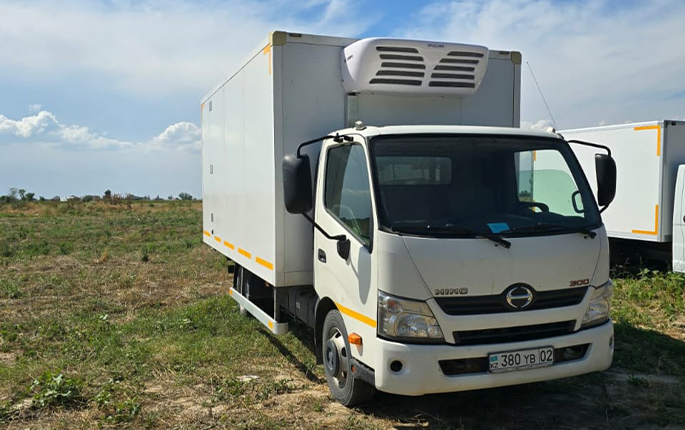

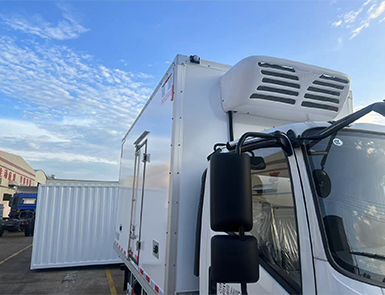

Fast cooling, and stable system pressure in the truck freezer units. It can be used for the 2 Pallet refrigerated truck, pick up.
Features

Streamlined appearance, beautiful and elegant

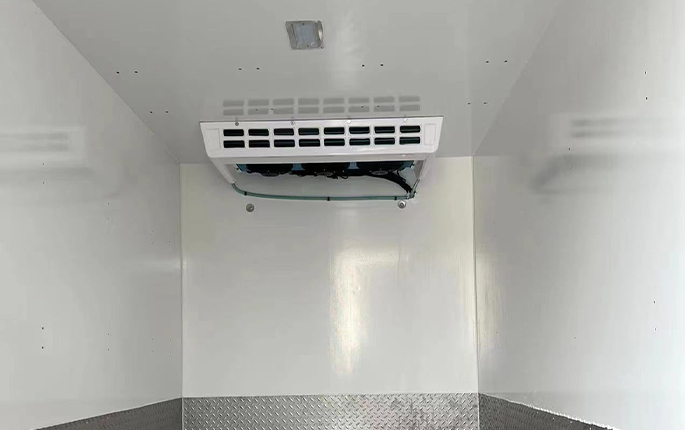

An internal ultra-thin evaporator greatly increases the cargo loading capacity

Large cooling capacity ensure the safety of the goods even in high ambient temperature or with frequent door openings

Large airflow volume maintains the goods in good condition

Microprocessor control and fault alarming, easy operation and safe

Fast installation, convenient maintenance

Optional heating and electric stand-by
Specification
Model SF-500

Cooling Capacity
Temperature Watts
0℃ 5080W
-18℃ 2800W
Control Voltage DC 12V/24V
Type Split unit vehicle engine driven type
Refrigerant & Qty R404A,1.5kg±5%
Box Inside Temp -18℃ ~ +15℃
Defrosting type Hot gas defrost(Auto/Manual)
Airflow Volume 2700m³/h

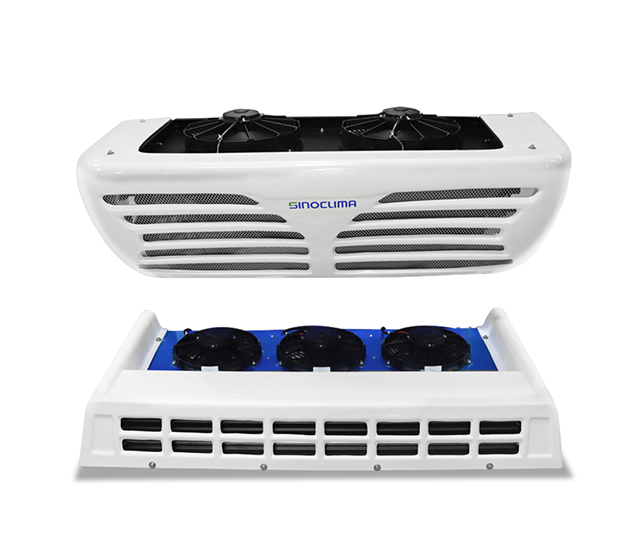

Condenser Type Parallel Flow Condenser
Fan Quantity 2Pcs
Dimensions 1200*530*390 mm
Weight 35Kg

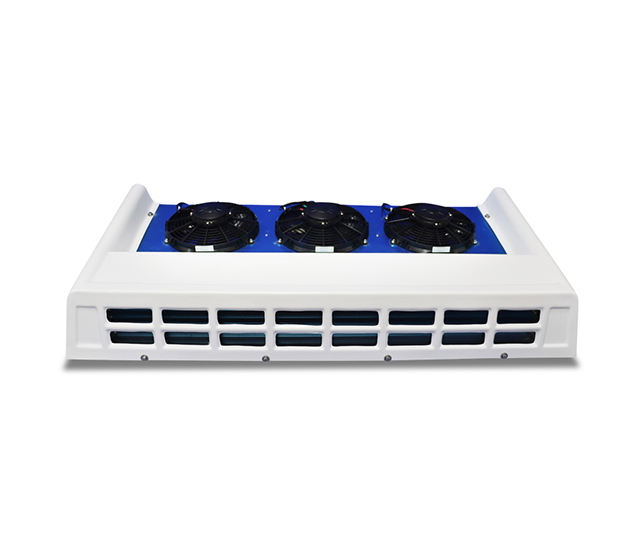

Evaporator Type Inner Grooved Copper Tube and Fin
Fan Quantity 3Pcs
Dimensions 1310*600*180 mm
Weight 25Kg
Compressor Model GY-TM16
Displacement 163cc/r
Applicable Box Volume 18~25m³
Optional function Heating and Electric standby
