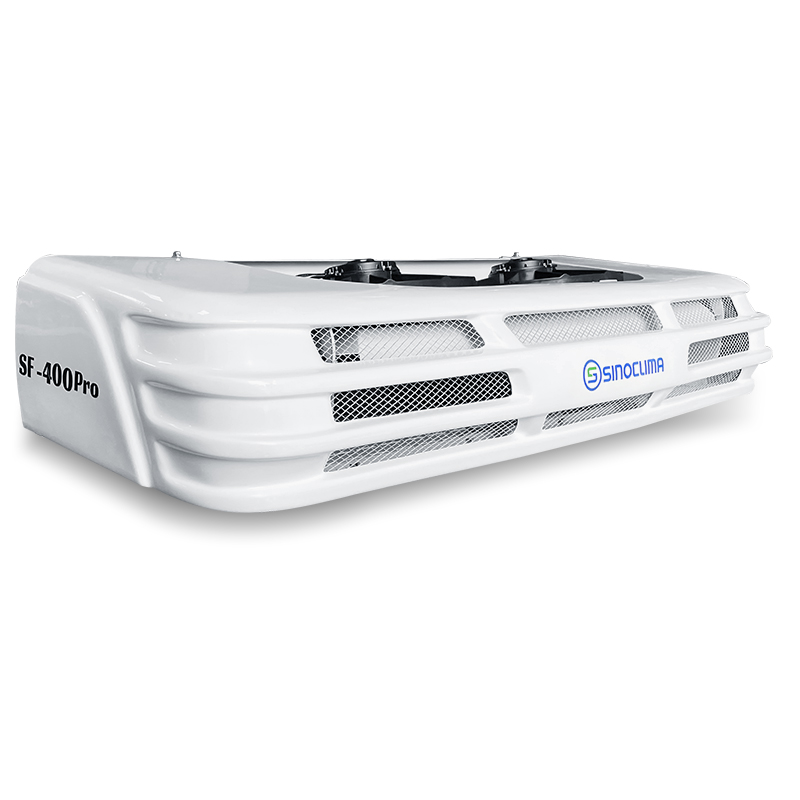

Truck refrigeration unit SF-400Pro

The Sinoclima SF-400Pro small truck refrigeration unit is specially designed for small refrigerated truck bodies to keep fresh and frozen, powered by the vehicle's engine and has great advantages in terms of fuel saving, environmental and high efficiency.
● Type: Split unit vehicle engine driven type
● Refrigerant & Qty: R404A,1.3kg±5%
● Box Inside Temp: -20℃ ~ +15℃
● Defrosting type: Hot gas defrost(Auto/Manual)
Share With:
Introduction
Product Introduction
Sinoclima’s SF-400Pro small truck refrigeration equipment is a direct engine drive truck freezer unit, designed for small refrigerated truck bodies to keep fresh and frozen, has great advantages in terms of fuel saving, environmental and high efficiency. High configuration and low maintenance costs. All key parts are purchased from famous brands. Standard versions with Oil separator, Filter Drier,auto defrost.Optional CPR valve,electric standby and heating functions.
With a choice of R404A gas,it can meet your chill,frozen and deep frozen applications.
Fast cooling, and low fault rates in the van freezer units.
Toyota Hiace insulated truck bodies,refeer box volume 16m³to 25m³.
Cooling mode in summer from +15°С to 0°С.
Freezing mode from 0°C to -18°C.
Winter heating mode up to +10/12°С.
Features

Streamlined appearance, beautiful and elegant

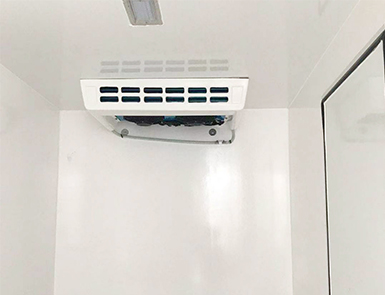

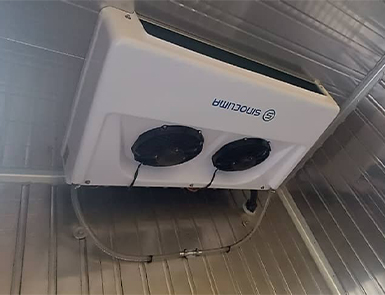

An internal ultra-thin evaporator, greatly increase the cargo loading capacity

Large cooling capacity ensure the goods safety even in high ambient temperature or frequent door opening

Large airflow volume, maintains the goods in good condition

Microprocessor control and fault alarming, easy operation and safe

Fast installation, convenient maintenance

Optional heating and electric stand-by
Specification
MODEL SF-400Pro
Cooling Capacity
Conditions Temperature Watts
Road 0 4420W
-18 2380W
Control Voltage DC 12V/24V
Defrosting Hot gas defrost(Auto./Manual)
Temperature Range -18~ +15
Refrigerant  & Volume R404A,1.3kg±5%
Airflow Volume 1600m³/h
Compressor&Displacement  Road QP16/163cc

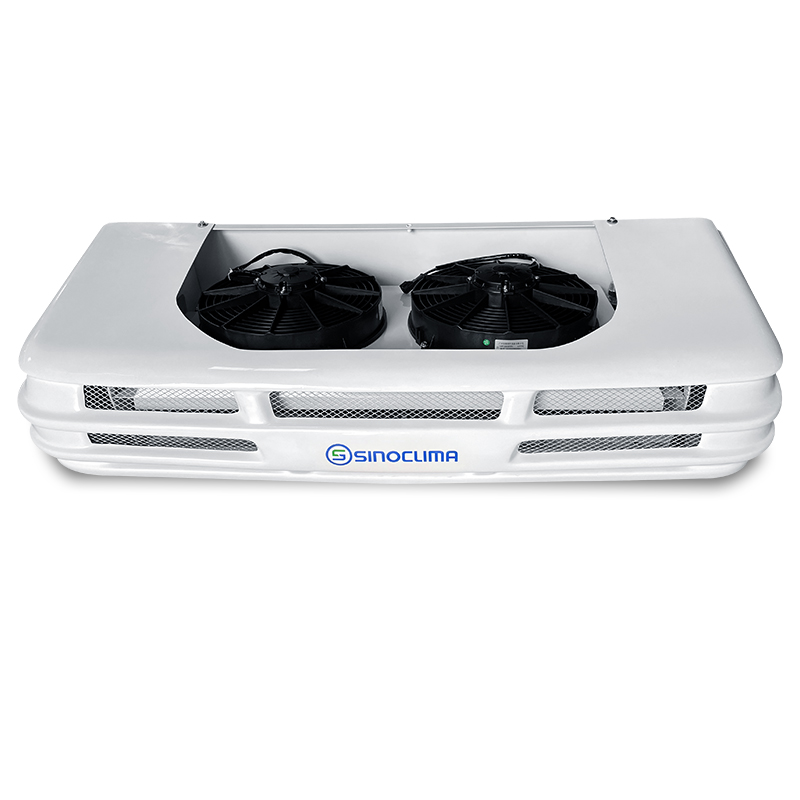

Condenser Type Parallel Flow Condenser
Qty of Fans 2Pcs
Dimensions 1230×485×228mm
Weight 34kg
Evaporator Type Inner Grooved Copper Tube and Fin
Qty of Fans 2Pcs
Dimensions  1020×637×213mm
Weight 23.2kg
Recommended Box Volume 16~25m³
Optional function Heating and Electric standby
