Truck Refrigeration Units SF-600
Truck Refrigeration Units SF-600
Truck Refrigeration Units SF-600
Truck Refrigeration Units SF-600

SF-600

SF-600 is a road-only high-quality transport refrigeration unit, that gets power from vehicles’ engines. With 2 condenser fans and 3 evaporator blowers.
● Type: Split unit vehicle engine driven type
● Refrigerant & Qty: R404A,2.8kg±5%
● Box Inside Temp: -25℃ ~ +30℃
● Defrosting type: Hot gas defrost(Auto/Manual)
Share With:
Introduction
Product Introduction
SF-600 is a road-only high-quality transport refrigeration unit, that gets power from vehicles’ engines. With 2 condenser fans and 3 evaporator blowers. Large air volume and combined with flat evaporators, the units are light-weighted to enable maximum loading capacity.SF-600 with Danfoss CPR valve, QP16 Compressor, Danfoss DML304 Filter. Temperature adjusts to range from -30 to +30. Application on 6 Pallet,14ft 16ft trucks box bodies, refrigerated truck Mitsubishi Fuso, Isuzu NPR, refrigerated truck boxes volume up to 35m³.  which can meet a variety of customer needs.Such as deliver to vegetables, fruit, meat, and frozen foods safely and reliably in the city.

Hot-selling in China and Overseas, such as in Mexico, Russia, Latin America, Panama, Nicaragua, Costa Rica, Guatemala, Dominica, Puerto Rico, Trinidad and Tobago, Jamaica, Barbados...
Features

Streamlined appearance, beautiful and elegant

An internal ultra-thin evaporator greatly increases the cargo loading capacity

Large cooling capacity ensure the safety of the goods even in high ambient temperature or with frequent door openings

Large airflow volume maintains the goods in good condition

High pressure switch&Low pressure switch

Oil Separator Refrigerant Reservoir CPR Regulator

Microprocessor control and fault alarming, easy operation and safe

Fast installation, convenient maintenance

Optional heating and electric stand-by
Specification
Model SF-600

Cooling Capacity
Temperature Watts
0℃ 5750W
-20℃ 2850W
Type Split unit vehicle engine driven type
Refrigerant & Qty R404A,2.8kg±5%
Box Inside Temp -25℃ ~ +30℃
Defrosting type Hot gas defrost(Auto/Manual)
Condenser Type Parallel Flow Condenser
Fan Quantity 2Pcs
Fan Type Axial type
Air Flow Volume 1800 m³/h
Dimensions 1270*590*415mm
Weight 48Kg

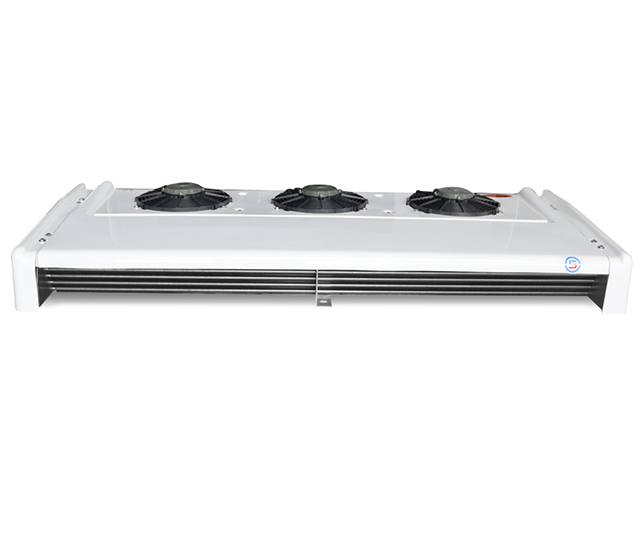

Evaporator Type Inner Grooved Copper Tube and Fin
Fan Quantity 3Pcs
Fan Type Axial type
Air Flow Volume 2420 m³/h
Dimensions 1320*635*200mm
Weight 33Kg
Compressor Model QP16
Type Swash plate type
Displacement 163cc/r
Refrigerated Oil RL-68H
Applicable Box Volume 25~35m³
Optional function Heating and Electric standby
