Truck Refrigeration Units SF-450
Truck Refrigeration Units SF-450
Truck Refrigeration Units SF-450
Truck Refrigeration Units SF-450

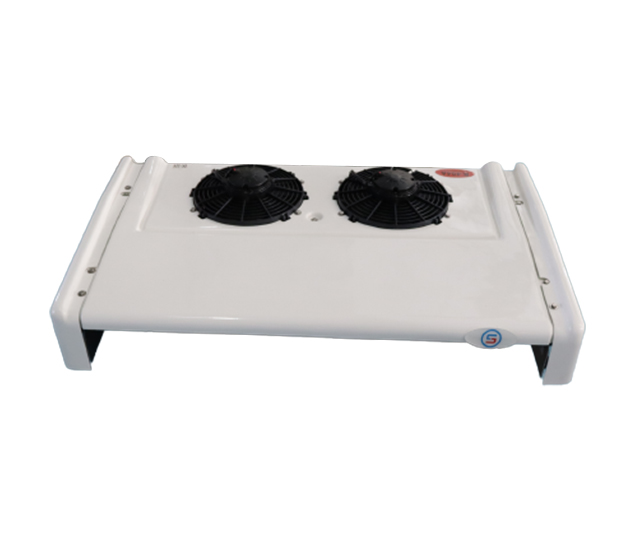

SF-450

SF-450 is a road-only high-quality truck freezer unit, that gets power from vehicles’ engines. With two condenser fans. and two evaporator blowers.Large air volume, enough cooling capacity, and fast cooling, which can meet a variety of customer needs.
● Type: Split unit vehicle engine driven type
● Refrigerant & Qty: R404A,1.8kg±5%
● Box Inside Temp: -20℃ ~ +15℃
● Defrosting type: Hot gas defrost(Auto/Manual)
Share With:
Introduction
Product Introduction
SF-450 is a road-only high-quality truck freezer unit, that gets power from vehicles’ engines. With two condenser fans. and two evaporator blowers.Large air volume, enough cooling capacity, and fast cooling, which can meet a variety of customer needs.Such as deliver to vegetables, fruit, meat, and frozen foods safely and reliably in the city.

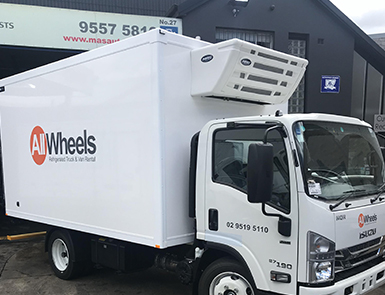

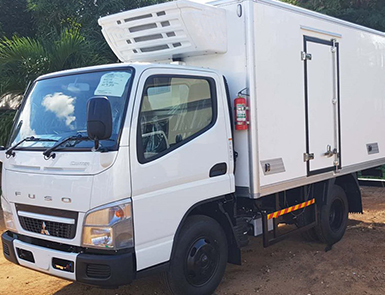

SF-450 transport refrigeration with CPR valve to ensure stable system pressure and protect the compressor, especially in hot ambient temperature countries.Hot-selling in China and Overseas,such as New Zealand, Australia, Panama, Argentina, Chile, Peru, Nigeria, Mauritius...Application on 3 Pallet,4 Pallet, refrigerated truck Mitsubishi Fuso, Isuzu NPR, refrigerated truck boxes volume up to 30m³.
Features

Streamlined appearance, beautiful and elegant

An internal ultra-thin evaporator greatly increases the cargo loading capacity

Large cooling capacity ensure the safety of the goods even in high ambient temperature or with frequent door openings

Large airflow volume maintains the goods in good condition

Microprocessor control and fault alarming, easy operation and safe

Fast installation, convenient maintenance

Optional heating and electric stand-by
Specification
Model SF-450

Cooling Capacity
Temperature Watts
0℃ 4500W
-20℃ 2500W
Type Split unit vehicle engine driven type
Refrigerant & Qty R404A,1.8kg±5%
Box Inside Temp -20℃ ~ +15℃
Defrosting type Hot gas defrost(Auto/Manual)
Condenser Type Parallel Flow Condenser
Fan Quantity 2Pcs
Fan Type Axial type
Air Flow Volume 1800 m³/h
Dimensions 1148*475*388 mm
Weight 35Kg
Evaporator Type Inner Grooved Copper Tube and Fin
Fan Quantity 2Pcs
Fan Type Axial type
Air Flow Volume 1800 m³/h
Dimensions 1016*635*230 mm
Weight 17Kg
Compressor Model QP16
Type Swash plate type
Displacement 163cc/r
Refrigerated Oil RL-68H
Applicable Box Volume 18~28m³
Optional function Heating and Electric standby
