Mobile Trailer Refrigeration Units SC30AD

SC30AD

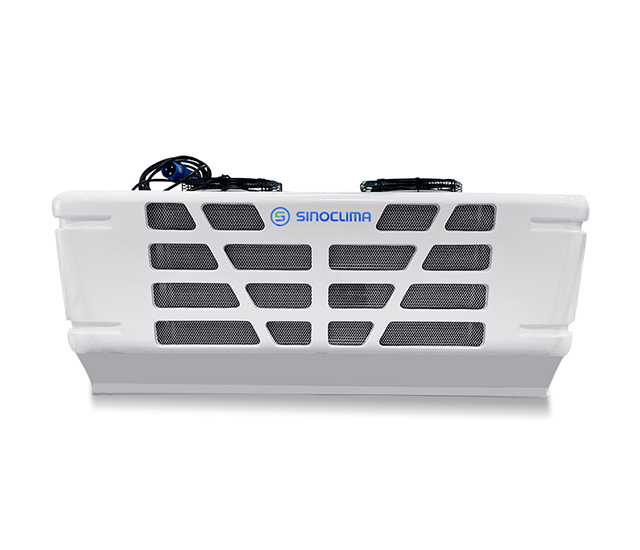

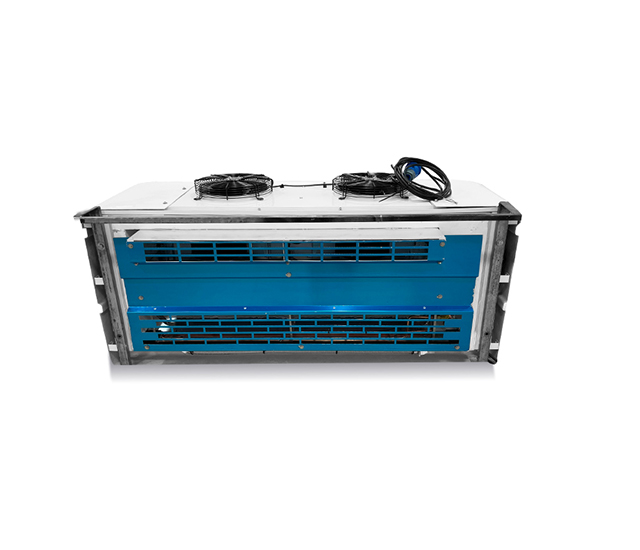

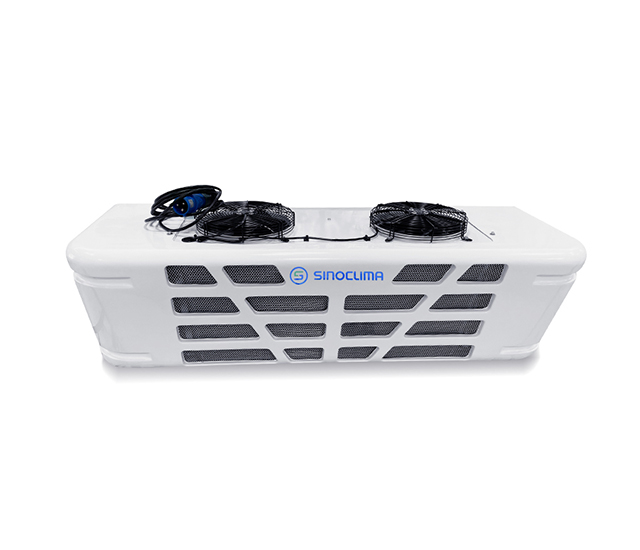

SC30AD is a compact direct drive mobile freezer trailer unit, with a Front mounted condenser. and super-thin evaporator. Application on refrigerated trailer bodies up to 25 m³.

● Type: Split unit vehicle engine driven type

● Refrigerant & Qty: R404A, 2kg±5%

● Box Inside Temp: -20℃ ~ +0℃

● Defrosting type: Hot gas defrost(Auto/Manual)

Send Email

Chat Now

Share With:

Introduction

Product Introduction

SC-30AD is special designed for vehicles up to 12-25m' refrigerated small trailer box.

With stable cooling performance, whether chilling or freezing, freezer trailer units are designed to provide fast, stable operation to meet your needs.

The plug-and-play design can also be powered by a generator, regardless of site constraints.

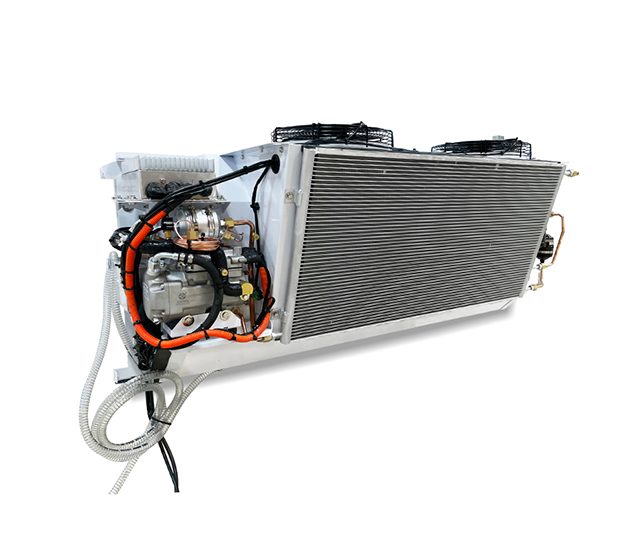

What is different from the traditional refrigeration unit is that the SC series is an integrated unit, that is, the condenser and evaporator are all together.

Features

Streamlined appearance, beautiful and elegant

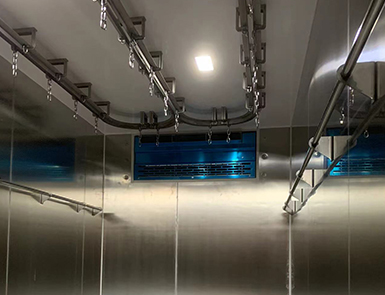

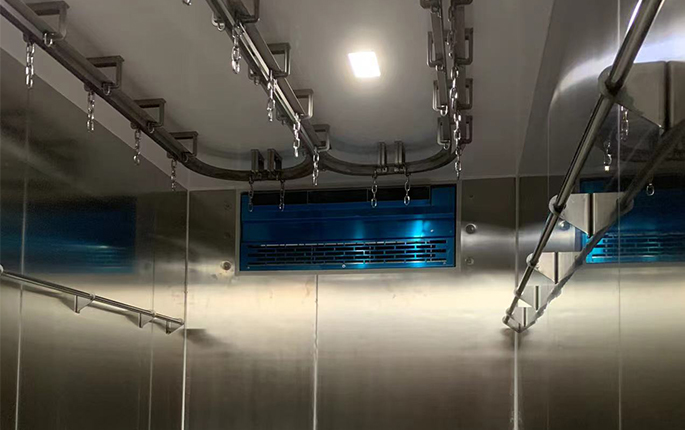

An internal ultra-thin evaporator greatly increases the cargo loading capacity

Large cooling capacity ensure the safety of the goods even in high ambient temperature or with frequent door openings

Large airflow volume maintains the goods in good condition

Microprocessor control and fault alarming, easy operation and safe

Fast installation, convenient maintenance

Cost Effective & Low Operating Expenses

Specification

MODEL	SC30AD-120V	SC30AD-220V
Room Temperature rang	-20℃ to 0 ℃	-20℃ to 0 ℃
Max. operating temperature	40℃	40℃
Room Volume	10-18m³	18-25m³
Voltage consumption	Single Phase AC110-120V,50/60Hz	Single Phase AC220V,50/60Hz
Cooling capacity(W/BTU)	3180W(0℃) 2090W(-20℃)	3580W(0℃) 2390W(-20℃)
Power consumption	1800W	2500W
Current consumption LRA	48	56
Current consumption FLA	15	12
Defrosting	Hot gas defrost	Hot gas defrost
Defrosting consumption	2230W	2510W
Air flow Evaporator	2400m³/h	2400m³/h
Air flow Condenser	2800m³/h	2800m³/h
Protection class	54IP	54IP
Refrigerant	R404A CFC Free	R404A CFC Free
Refrigerant Charge	2.0Kg	2.0Kg
Weight	85kg	85kg
Compressor model	GY27	GY34
Compressor displacement	27CC	34CC

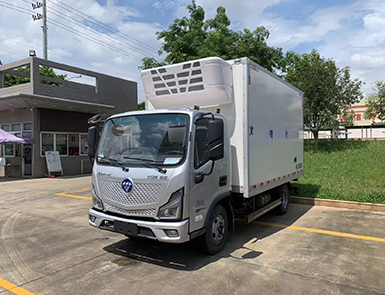

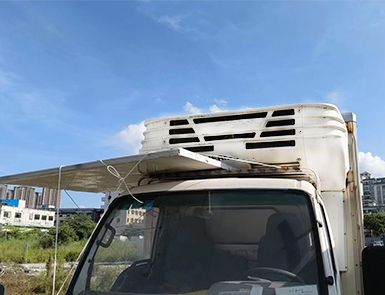

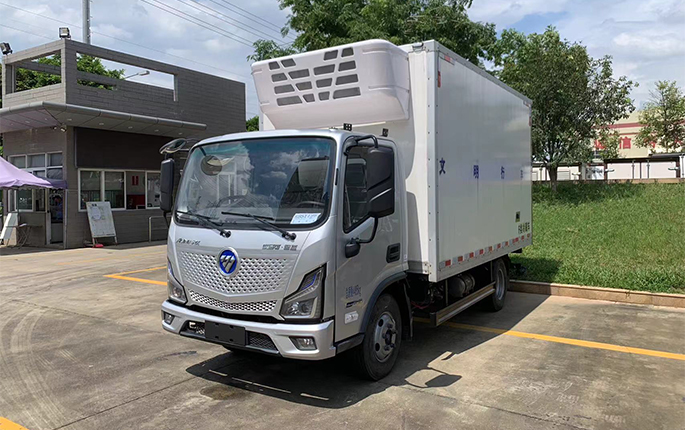

Application
