T-460ES

Sinoclima T-460ES series units are designed for fresh, frozen and deep frozen applications .This unit is available with Electric Standby, which can plug into external ac power when the engine is off. All key parts are purchased from famous brands.
● Type: Split unit vehicle engine driven type
● Refrigerant & Qty: R404A,1.4kg±5%
● Box Inside Temp: -20℃ ~ +15℃
● Defrosting type: Hot gas defrost(Auto/Manual)
Share With:
Introduction
Product Introduction
Sinoclima T-460ES series units are designed for fresh, frozen and deep frozen applications .This unit is available with Electric Standby, which can plug into external ac power when the engine is off. All key parts are purchased from famous brands. Such as QP,Sanden Compressor, Danfoss, Spal.. Standard versions with Oil separator, Filter Drier, and auto defrost functions.

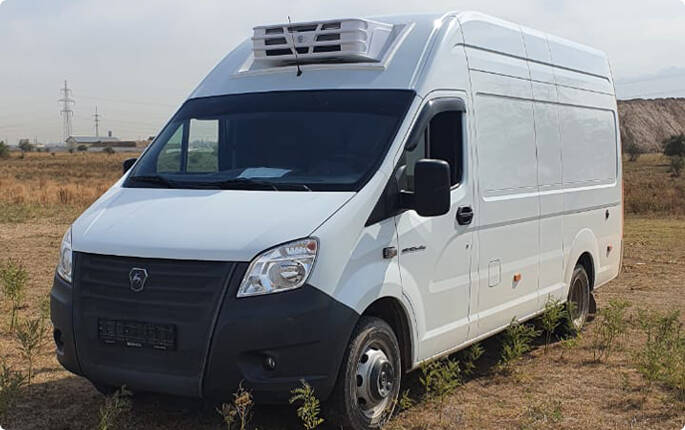

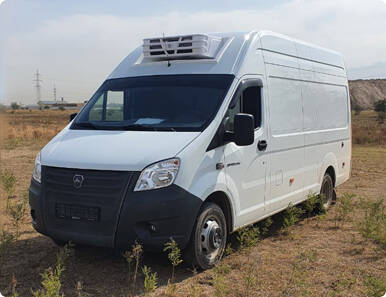

Fast cooling down, and low fault rates in the van freezer units. Which is mainly used on the Toyota Hiace,MB Sprinter....cargo vans.Apply for a 14 -25 m³small van and medium refrigerated cargo vans box.
Hot selling in UAE, Canada, South Africa, New Zealand, Russia, Kazakhstan, Serbia, Hungary, Czech Republic, Slovakia, Bulgaria, Poland
Cooling mode in summer from +15°С to 0°С.
Freezing mode from 0°C to -18°C.
Winter heating mode up to +10/12°С.
Features

Electric Standby Compressor installed on top

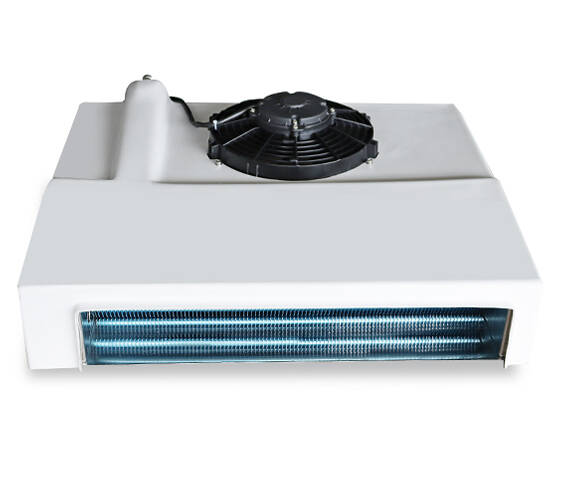

Ultra-Slim Evaporator with Huge Air Volume

In-cab Digital Controller, with e-diagnostics

R404a eco-friendly Refrigerant

Operation on 12/24V DC Vehicles

Automatic and Manual Hot Gas Defrost

Oil Separator and Refrigerant Reservoir protect the compressor
Specification
Model T-460ES

Cooling Capacity(Road)
Temperature Watts
0℃ 5100W
-20℃ 2450W
Cooling Capacity(Standby) 0℃ 4650W
-20℃ 2100W
Type Split unit vehicle engine driven type
Refrigerant & Qty R404A,1.4kg±5%
Box Inside Temp -20℃ ~ +15℃
Defrosting type Hot gas defrost(Auto/Manual)
Condenser Type Parallel Flow Condenser
Fan Quantity 2Pcs
Fan Type Axial type
Air Flow Volume 2200 m3/h
Dimensions 1060*730*220 mm
Weight 32Kg
Evaporator Type Inner Grooved Copper Tube and Fin
Fan Quantity 2Pcs
Fan Type Axial type
Air Flow Volume 2200 m3/h
Dimensions 1020*635*210 mm
Weight 26Kg
Compressor Model QP16
Type Swash plate type
Displacement 163cc/r
Refrigerated Oil RL-68H
Applicable Box Volume 14~25m³
Electric standby AC220V/1Phase/50HZ 60HZ
Optional function Heating
