| Model | SF-450ES | |
Cooling Capacity(Road) |
Temperature | Watts |
| 0℃ | 4735W | |
| -20℃ | 2420W | |
| Cooling Capacity(Standby) | 0℃ | 3915W |
| -20℃ | 2020W | |
| Type | Split unit vehicle engine driven type | |
| Refrigerant & Qty | R404A,1.8kg±5% | |
| Box Inside Temp | -20℃ ~ +25℃ | |
| Defrosting type | Hot gas defrost(Auto/Manual) | |
| Condenser | Type | Parallel Flow Condenser |
| Fan Quantity | 2Pcs | |
| Fan Type | Axial type | |
| Air Flow Volume | 2200 m3/h | |
| Dimensions | 1270*588*415mm | |
| Weight | 98Kg | |

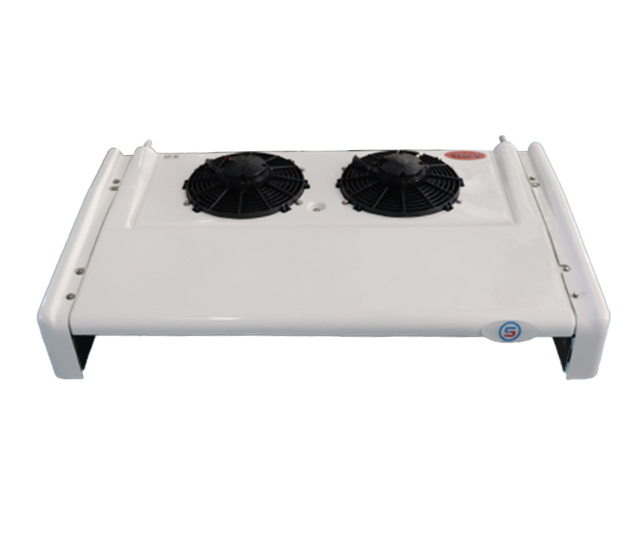

| Evaporator | Type | Inner Grooved Copper Tube and Fin |
| Fan Quantity | 2Pcs | |
| Fan Type | Axial type | |
| Air Flow Volume | 1830 m3/h | |
| Dimensions | 1080*619*200mm | |
| Weight | 23Kg | |

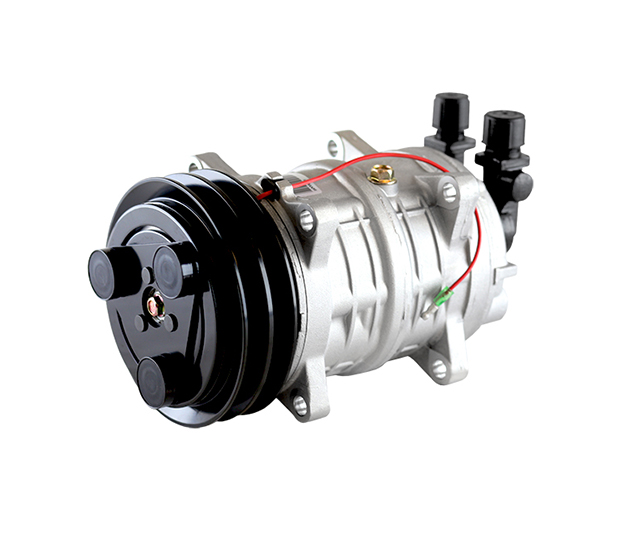

| Compressor | Road Model | QP16/163cc |
| Standby Model | KX-48L/48cc | |
| Refrigerated Oil | RL-68H | |
| Electric Standby Power Supply | AC220V 1Phase 50HZ / AC380V 3Phase 50HZ | |
| Applicable Box Volume | 18~25m³ 3 Pallet,4 Pallet, 12ft ,14ft | |
| Optional function | Heating | |
