Diesel Engine Refrigeration Units SF-800D
Diesel Engine Refrigeration Units SF-800D
Diesel Engine Refrigeration Units SF-800D
Diesel Engine Refrigeration Units SF-800D

SF-800D

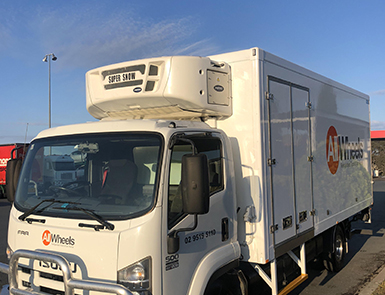

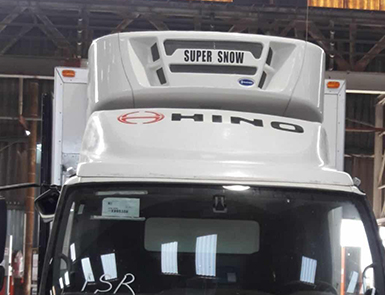

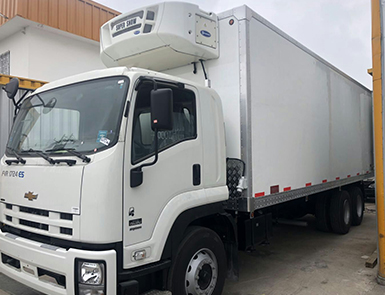

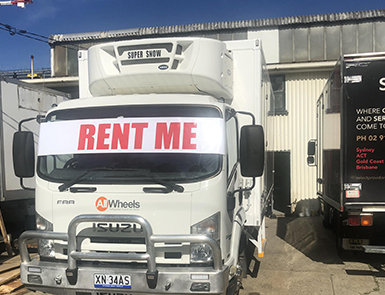

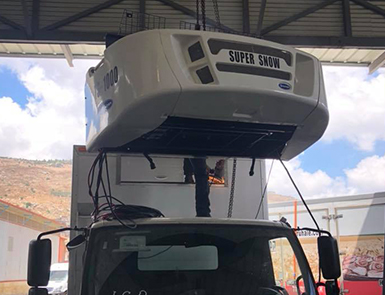

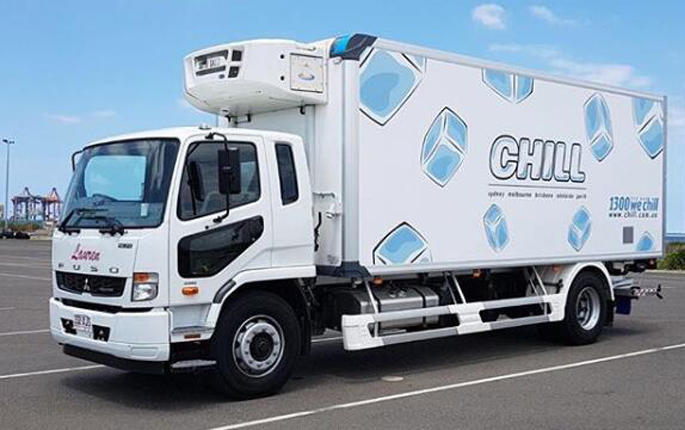

Sinofrigo SF-800D units are specially designed for fresh, frozen, and deep-frozen cargo. Its application on the refrigerated truck box volume 25~45m³.SF-800D includes an independent YANMAR 3 cylinders diesel engine which allows the unit to be operated by its engine.
● Airflow Volume: 2350m³/h
● Temp. range: -30℃~30℃
● Refrigerant and volume: R404A/4.8KG
● Defrost: Automatic hot gas defrost
Share With:
Introduction
Product Introduction
Sinofrigo SF-800D units are specially designed for fresh, frozen, and deep-frozen cargo. Its application on the refrigerated truck box volume 25~45m³.SF-800D includes an independent YANMAR 3 cylinders diesel engine which allows the unit to be operated by its engine. It also is switched to Electric standby mode by electric motors.

With SF-800D high cooling capacity and multi-operation features, you won't have to worry about your products' conditions during deliveries. No matter what weather condition it may be, SF-800D will maintain your products' cold temperature. They are suitable for the customer who wants to put together durability and reliability with low operational cost and handling charges.
Features

Japan YANMAR engine low noise, low emission, and low vibration level

German GEA Bock compressor

R-404A Eco-friendly refrigerant

In-cab remote display and control

Multiple safety protection devices

Automatic and manual defrost system

3-Phase standby motor

Automatic phase failure correction
Specification
Models SF-800D
Cooling Capacity Road/Standby Temperature Watt Btu
On the Road 0℃ 7150 24400
-18℃ 3960 13500
Electric Standby 0℃ 6240 21300
-18℃ 3295 11240
Airflow Volume 2350m³/h
Temp. range -30℃~30℃
Refrigerant and volume R404A/4.8KG
Defrost Automatic hot gas defrost
Voltage 12VDC
Compressor Model BOCK FKX30
Displacement 235TK/233cc
Engine Model Yanmar 3TNV70
No. of cylinder 3
Electric Standby Options 220V/240V/380V/400v/3Phase 50Hz/60Hz
Overall Size 1825*860*630 mm
Evaporator Opening Size 1245*310 mm
Weight 432kg
Recommend Box Volume 25~45m³ 10 Pallet 16ft 18ft 20ft
