RV-3800PRO

Sinoclima RV-3800PRO is a AC-powered air conditioning system that plug into external AC power 220V.

● Type: Vehicles’ Battery Driven Type

● Structure: Roof Integrated Mounted

● Voltage: 12V/24VDC

● Refrigerant: R-134A

● Compressor: Electric Compressor

● Controller: Digital, In Cab

Send Email

Chat Now

Share With:

Introduction

Product Introduction

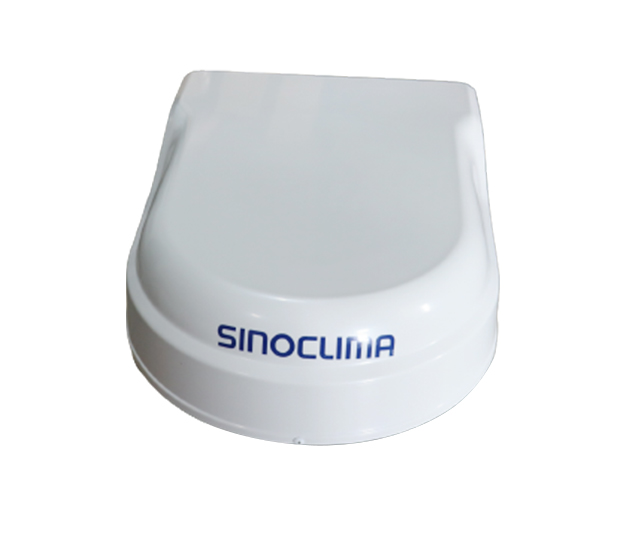

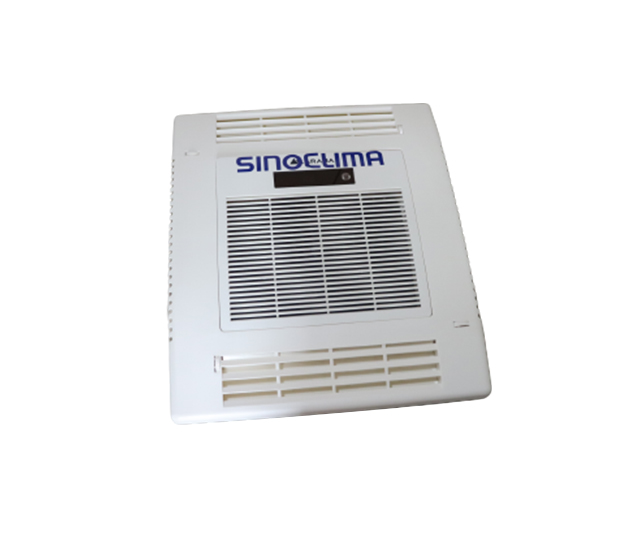

Sinoclima RV-3800PRO is a AC-powered air conditioning system that plug into external AC power 220V.
Special design for medical vehicle&RV.while the vehicle's engine is turned off allowing drivers to rest in comfort wherever they are, day and night.Great cooling performance. No idling required.

Features

Use environmentally friendly R410a refrigerant;

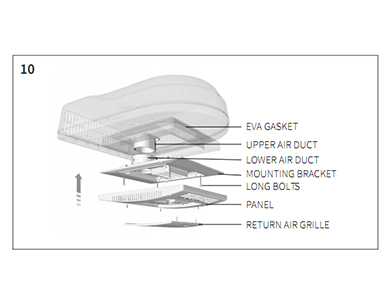

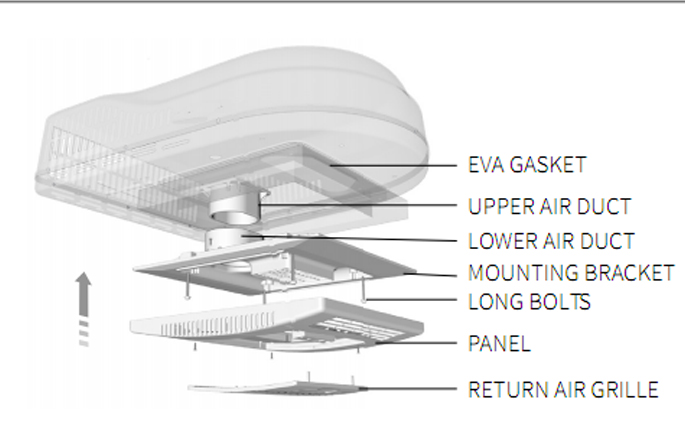

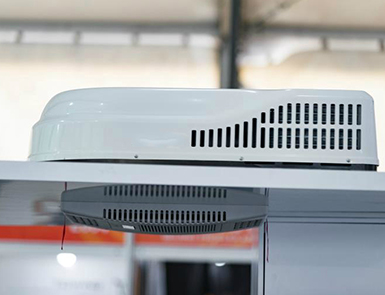

One-piece unit; rooftop mounted, easy for installation

Brushless fans have a long lifetime and lower power consumption

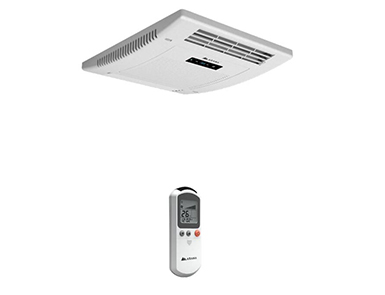

Remote control, combined with manual

Cooling design using axial flow fan;

Optional heater pumper heating

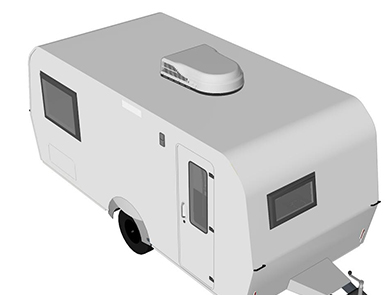

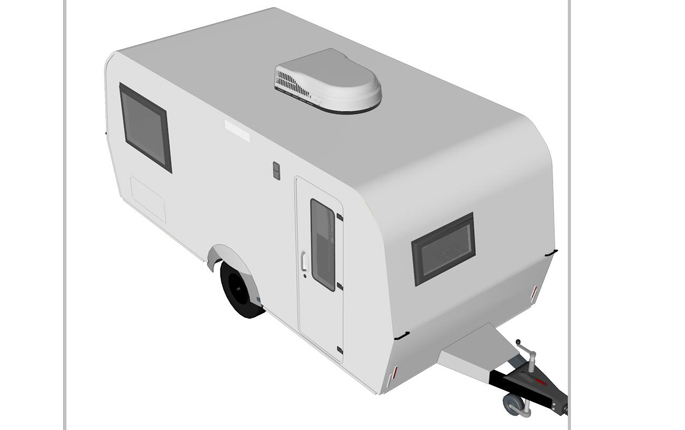

Special for RV, Medical Vehicle,Mobile Communications vehicle and etc.

1 Year Warranty

Specification

Model	RV-3800Pro
Refrigerant/Volume	R410a
Cooling capacity	4000W / 13648Btu
Power	1450W
Voltage	AC220 / 50Hz
Evaporator blower air vol.	600m3/h
Condenser fan air vol.	1000m3/h

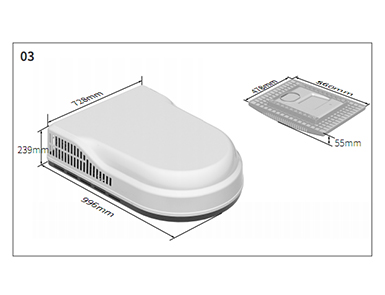

Dimensions	788632256mm
Weight	30kg
Open hole size	360*360mm
Mechanical control panel size	53964572mm
Vehicle Applications	All trucks, van , tractor and RV cabs etc.

Application
